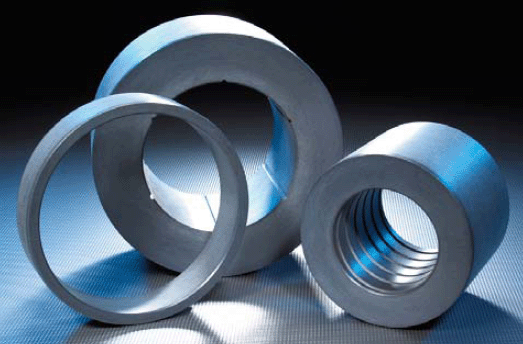

WR®600
SUPERIOR CHEMICAL COMPATIBILITY WITH EXTENDED DRY RUN CAPABILITIESELIGIOUS
THERMOPLASTIC COMPOSITE
Small Running Title WR®600 is a carbon-fiber-reinforced, compression-molded thermoplastic composite with a temperature range up to 500°F (260°C). Exceptional chemical compatibility means WR600 can withstand extremely aggressive media such as hydrofluoric acid and benzene. In addition, its non-seizing, non-galling properties allow for extended periods of dry run.This material features excellent impact and thermal shock resistance, tolerating rapid startup or shutdown without the risk of fracture. And WR600 components run tighter clearances than traditional metallic materials, reducing recirculation and improving efficiency. The result is substantial energy savings, extended service life, and improved MTBR (Mean Time Between Repair).Greene, Tweed’s engineers provide expert assistance in determining the best material and design for each application. With comprehensive, in-house machining centers, Greene, Tweed offers custom, finished WR600 parts as well as a limited number of stock shapes. WR600 is API 610 approved for stationary wear applications.
FEATURES & BENEFITS
-
Almost universal chemical compatibility and corrosion resistance
-
Improved dry run properties to extend the reliability and lifetime of the pump
-
Quick and easy machining to exact finish dimensions, reducing pump repair turnaround time and increasing equipment availability
-
Superior impact resistance for enhanced damage protection
-
Excellent thermal shock resistance allowing for rapid start up or shut down of process without risk of fracture or pump failure
-
Improved vibration damping for increased pump life
TYPICAL PROPERTIES
EXTREME DRY RUN TESTING
APPLICATIONS
-
Stationary wear rings for static applications
-
Pump applications in refineries, chemical plants, power plants and water treatment plants
-
All centrifugal pumps (overhung, vertical in-line, single-stage between bearings, multi-stage horizontal, vertical, etc.)
CHEMICAL COMPATIBILITY
EXTREME DRY RUN TESTING
-

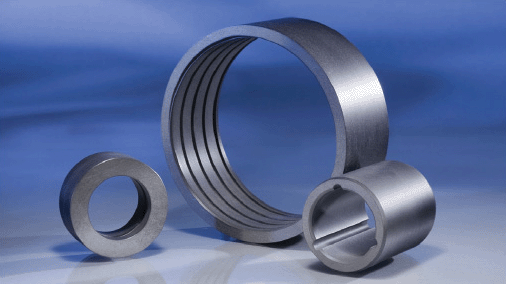

Ability to offer finished parts and stock shapes
-
Greene, Tweed maintains common wear ring billet sizes in inventory. Billet diameters range from 2 in. to 12 in. (5 cm to 30 cm) OD, and lengths of up to 6 in. (15 cm) are possible

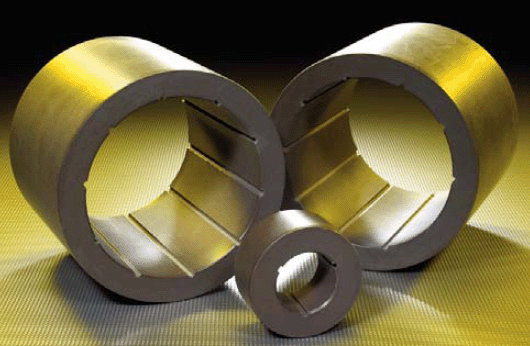

COMPOSITE WEAR PARTS FOR RADIAL LOADS
